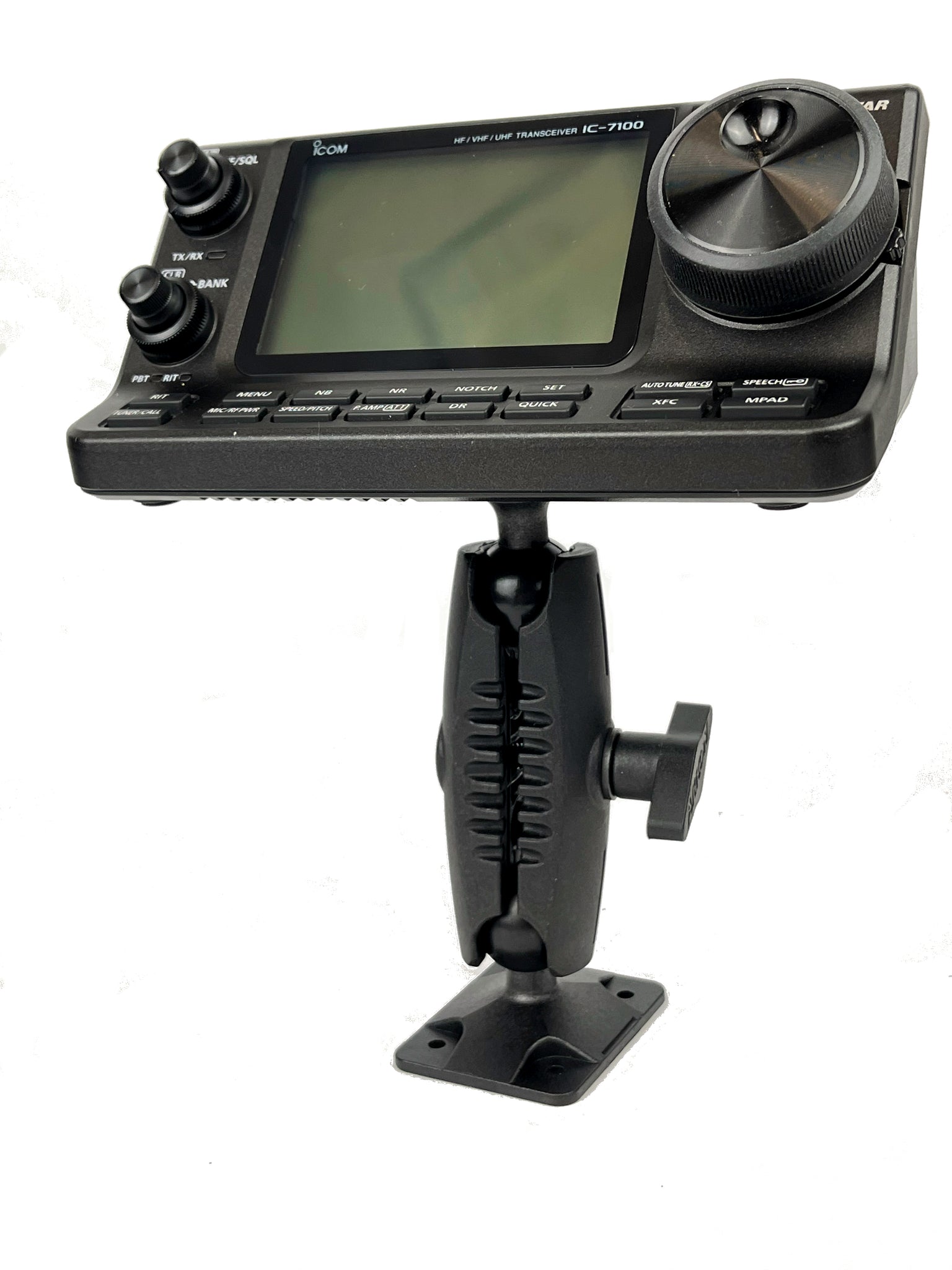

Designed for permanent, low-vibration installations, the Lido Heavy-Duty Drill-Down Mount Kit w/ 1/4"-20 Stud provides a rock-solid platform for Icom mobile transceiver control heads, satellite radios, cameras, and GPS units. Featuring a high-strength fiber-composite build, a 4-hole AMPS drill base, and a 1/4"-20 threaded stud plate, this mount attaches directly to OEM remote head brackets for a clean, stable installation.

Key Features:

• Direct 1/4"-20 Threaded Mount: Equipped with a 1" (25mm) ball adapter featuring a 1/4"-20 threaded stud designed to screw straight into Icom transceiver remote head brackets and standard thread mounts.

• Broad Icom Bracket Compatibility: Fits popular Icom brackets including the MB-63 (IC-706 series), MB-105 (IC-7000), MBA-8 (ID-4100), and the factory IC-2820 bracket.

• Heavy-Duty 4-Hole AMPS Drill Base: Solid 4-hole base plate (30.17mm x 38.05mm center-to-center spacing) drills securely into dashboards, vehicle consoles, workbenches, or walls in commercial, fleet, and public safety applications.

• 1" (25mm) RAM-Compatible System: Built on a rugged 1-inch (25mm / B-size) dual-socket architecture made from nylon-and-fiber composite to minimize road vibration and hold positioning under heavy use.

• Full 360-Degree Articulation: Standing 5.25 inches high from base to top, dual swivel joints at both ends provide 360-degree rotation and multi-axis tilt for optimal line-of-sight positioning.

• 2-Year Limited Warranty: Backed by Lido’s 2-year manufacturer warranty for commercial-grade reliability.

Please Note: Package includes the heavy-duty 4-hole AMPS drill mount assembly and 1" ball plate with 1/4"-20 stud. Transceiver control heads and OEM Icom remote head brackets (such as the MB-63, MB-105, or MBA-8) are shown for illustration only and are not included. (Note: The IC-2820 control head bracket comes standard from Icom and does not need to be purchased separately).
